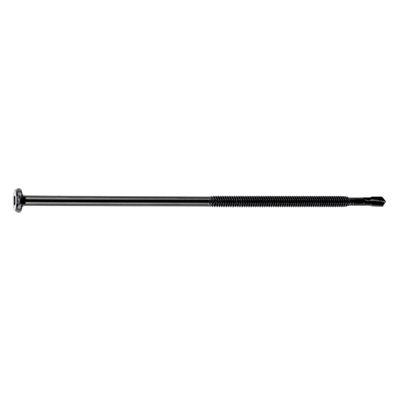

SFS Dekfast #12 Purlin Fastener, #3 Square Drive, Pancake Head, 2-Inch, Phillips Drive

SFS Dekfast #12 Purlin Fastener, #3 Square Drive, Pancake Head, 2-Inch, Phillips Drive

FM Approved Miami-Dade Approved
Regular price $185.00 USD
Regular price Sale price $185.00 USD
Sale Sold out
Shipping calculated at checkout.

Retrofit Roofing Fastener for Heavy Gauge Purlins | High-Strength Steel with Cathodic Epoxy Coating

The #12 Dekfast Purlin Fastener is purpose-built for retrofit roofing applications requiring penetration into heavy-gauge steel purlins. Its low-profile pancake head ensures minimal membrane distortion, while the #3 square drive delivers superior bit engagement and installation stability.

Manufactured with a specialized drill-point geometry and 24 TPI thread, this fastener easily drills and taps into 18-gauge through 1/4" purlin steel, minimizing walking and ensuring strong pull-out values. A high-performance cathodic epoxy e-coat finish provides excellent corrosion resistance in roofing environments.

Key Features:

  • #3 Square Drive: Extra-stable bit connection reduces cam-out and stripping
  • Pancake Head: Low-profile design for minimal distortion under membrane or cover board
  • Specialized Drill Point: Prevents fastener walking and provides chip clearance before thread engagement
  • 24 TPI Thread: Optimized for metal-to-metal connections with excellent pull-out strength
  • Corrosion Protection: Cathodic epoxy e-coat tested to 800 hours salt spray and 15/15 Kesternich (FM 4470)

Material Strength:

  • Tensile: 2,300 lbf
  • Torsional: 100 lbf∙in

Pull-Out Strength (Steel Substrates):

  • 12 Ga (2.6 mm): 1,477 lbf
  • 14 Ga (1.9 mm): 869 lbf
  • 16 Ga (1.5 mm): 599 lbf
  • 18 Ga (1.2 mm): 424 lbf
  • 3/16" (4.8 mm): 2,300 lbf* (tensile failure)
  • 1/4" (6.4 mm): 2,300 lbf* (tensile failure)

*Indicates fastener broke before substrate pull-out – a measure of extreme holding power.

Application:

  • Roofing retrofit systems where insulation and membrane need secure attachment to heavy-gauge steel purlins

Tools Required: 1,800–2,500 rpm screw gun with depth-sensing nosepiece and Square #3 bit (included in carton)

Approvals: Florida Building Code Approved (FL20311)

Ideal For:
Roofing contractors performing retrofit projects involving thick purlin steel where high-strength, low-profile fasteners are critical to system performance and code compliance.
