Termination Bars

Aluminum Termination Bars for Membrane Wall Flashings | Multiple Profiles Available

The TB Series Termination Bars from SFS are precision-extruded aluminum profiles designed for securing membrane flashings to vertical surfaces in commercial roofing systems. Manufactured from 6063-T6 aluminum alloy, these bars offer excellent strength and corrosion resistance, and are available in a range of profiles to suit different membrane edge conditions and wall terminations.

All TB bars feature pre-punched slots for fastener placement, spaced at 6" o.c., and smooth edges for safe handling and membrane contact. Whether you're working with standard, rigid, or specialty surfaces, the TB series has a profile to match.

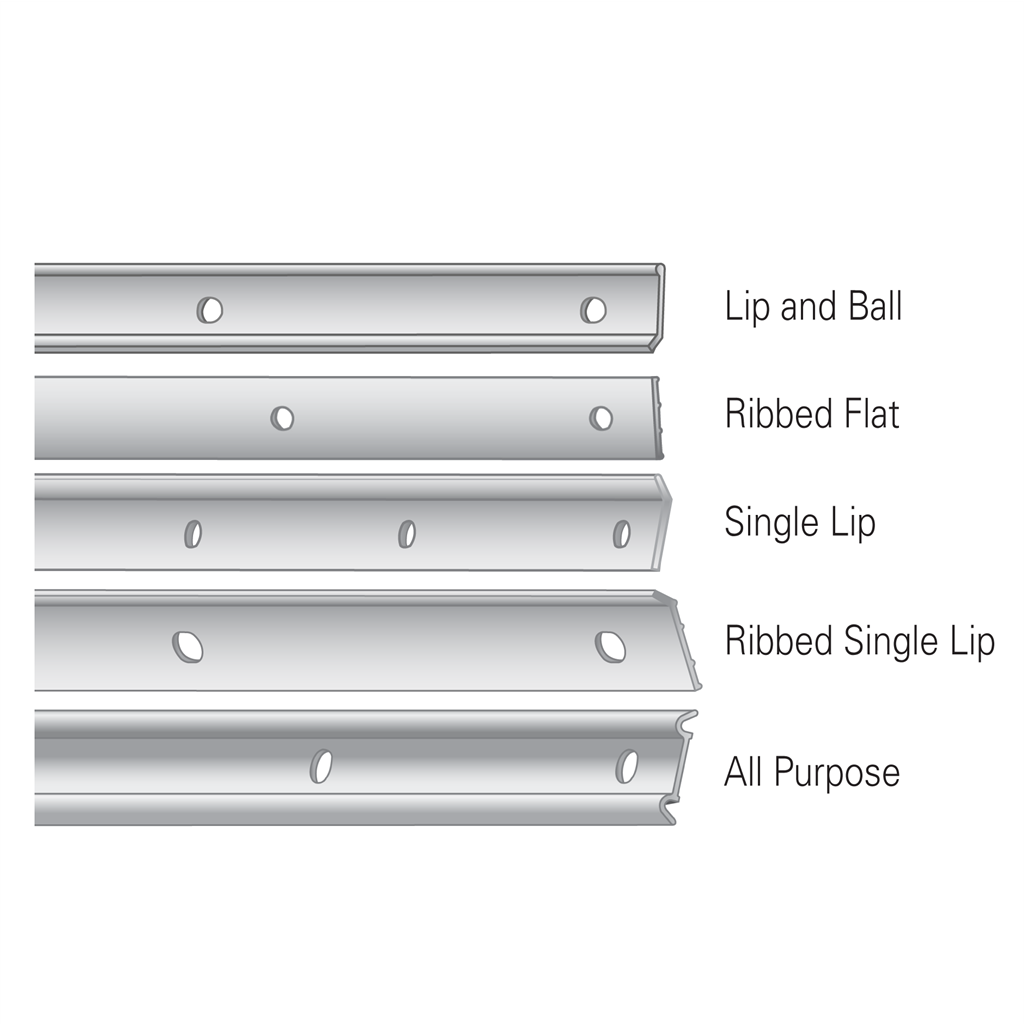

Product Types and Dimensions:

• TB-AP (All Purpose): 0.050" thick x 1" wide – flat profile for standard use
• TB-SL (Single Lip): 0.075" thick with 0.216" lip – ideal for added membrane grip
• TB-RSL (Ribbed Single Lip): 0.075" thick with 0.213" lip – enhanced edge stability with ribbing
• TB-R (Ribbed Flat): 0.100" thick with 0.1" rib – increased strength for high wind areas
• TB-LB (Lip & Ball): 0.082" thick with rounded grip feature – maximum surface engagement

Key Features:

• 6063-T6 Extruded Aluminum: Lightweight, corrosion-resistant, and easy to install
• Pre-slotted Design: Fastener slots (0.270" x 0.380") spaced 6" o.c. for consistent load distribution
• High-Wind Applications: Ribbed options designed for added rigidity and hold in high-pressure zones
• No Sharp Edges: Membrane-safe handling with smooth, professionally finished edges
• Standard Length: 10 ft. (3.05 m) sections – packaged 50 pcs (500 linear feet)

Application:

• Wall termination and membrane edge securement in single-ply and multi-ply roofing systems

Compatible With:
#14 Dekfast, #15 Dekfast, ZAC® Anchors, and Zinc Nailins

Ideal For:
Contractors installing termination details in low-slope roofing applications requiring strong, clean, and code-compliant membrane edge termination.
